High Efficiency Fast Response，5A, 30V Input Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY21211FCC |
| Channel(#) |
|
| Vin (min) (V) |
4.5 |
| Vin (max) (V) |
30 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
|
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
|
| Iout (max) (A) |
5 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1.5% |
| Vout accuracy(±%) |
|
| Control mode |
|
| Duty cycle (max)(%) |
|
| Operation mode |
|
| Iq (typ) (uA) |
|
| Features |
|
| Package |
SO8E |
| Operating temperature range(°C) |
|
| Functional safety category |
|
- Low RDS(ON) for Internal Switches (Top/Bottom): 70 mΩ /40 mΩ
- 4.5-30V Input Voltage Range
- Instant PWM Architecture to Achieve Fast Transient Responses
- External Soft-start Limits the Inrush Current
- Pseudo-constant Frequency: 500kHz at Heavy Loads
- 5A Continuous, 6A Peak Load Current Capability
- 1.5% 0.6V Reference
- Output Over Current Limit
- Output Short Circuit Protection with Current Fold Back
- Thermal Shutdown and Auto Recovery
- RoHS Compliant and Halogen Free
- Compact Package:SO8E

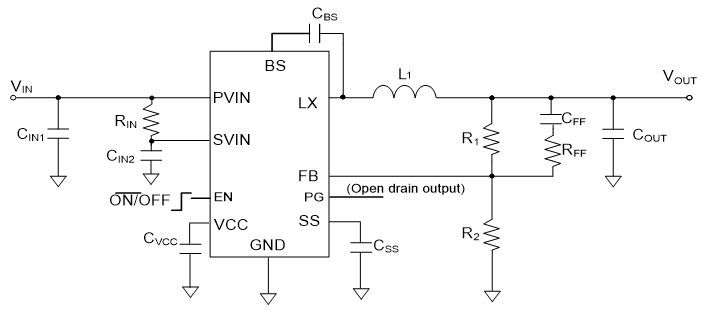

The SY21211, high efficiency synchronous step-down DC/DC converter is capable of delivering 5A output current while operating over a wide input voltage range from 4.5V to 30V. The device integrates very low RDS(ON) main and synchronous MOSFETs to minimize the conduction loss and deliver high efficiency.
The SY21211 uses the instant PWM architecture to achieve fast transient responses for high step-down ratio applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under continuous conduction mode to minimize the size of inductor and capacitor.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SY21211FCC is intended for evaluating fast response, 5A continuous, 6A peak current, 30V input synchronous Buck regulator. It features Enable control, output voltage selection inputs.
