SY22604KAC (SY5864KAC)

Production
Adaptive LED Current Filter For LED Lighting
Datasheet
SY22604KAC Adaptive LED Current Filter For LED Lighting Datasheet
    Part NumberSY22604KAC
    PackageTO220-3
    Vin_min (V)20
    Vin_max (V)60
    Io_max (A)1.5
    Protection ModeOLP,SLP,OTP
    Features / Special FunctionAdaptive,Wide Range
    ApplicationRipple Remover
    Temp Range-40℃ to 150℃



    • Current Filter for Single Stage LED Driver to Eliminate Current Ripple
    • Proprietary Scheme for Low Power Loss ≤2.5%
    • Adaptive for Wide Output Speculation：

    Output Voltage Range from 20V to 60V
    Output Current Range from 0.25A to 1.5A

    • Open LED Protection and Short LED Protection
    • Reliable Short LED and Open LED Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: TO220-3

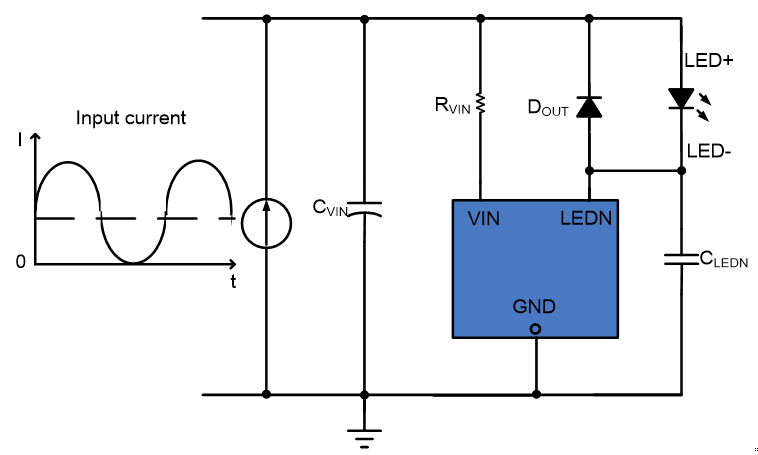

    The SY22604 is an adaptive linear current regulator to eliminate low frequency current ripple targeting at LED lighting applications.



     It is applied as a current filter to the output of a LED driver, especially single stage LED driver. It adopts adaptive control scheme and no additional electrical design is needed.



    Reliable open/short LED protection and over thermal protection are all provided.



    Evaluation Board

    • 2022-02-16_150108

      Photo of evaluation board

    • 2022-02-16_150117

      Photo of evaluation board

    EVB_SY22604KAC

    The EVB_SY22604KAC is intended for evaluating  AC 20~60V input, 40V/1200mA output Adapter LED Current Filter For LED Lighting
