SY22852FAC (SY6174FAC)

Production
Flyback Regulator with Primary Side CV/CC Control for Adapters and Chargers
Datasheet
SY22852FAC Flyback Regulator with Primary Side CV/CC Control for Adapters and Chargers Datasheet
Part number SY22852FAC
Channel(#) 1
Vin (min) (V) 18
Vin (max) (V) 75
Topology PSR flyback
Switching frequency (min)(kHz)
Switching frequency (max)(kHz) 120
Vout (min) (V) Programmable
Vout2 (min)(V)
Vout (max) (V) Programmable
Vout2 (max )(V)
Vref accuracy (±%) 1.5
Vout accuracy(±%)
Control mode Peak current mode
Duty cycle (max)(%)
Operation mode PWM/PFM
Iq (typ) (uA) 1000
Features PSR CV/CC,QR Flyback
Package SO8
Operating temperature range(°C) -40 to 125
Functional safety category



  • Integrated 200V MOSFET
  • Primary side CV/CC control eliminates the opto-coupler
  • Valley turn-on of the primary MOSFET to achieve low switching losses
  • Low start up current: 15μA typical
  • Maximum switching frequency limitation 120kHz
  • Compact package: SO8






SY22852 is a PWM controller with several features to enhance performance of Flyback converters. It integrates a 200V MOSFET to decrease physical volume. Both current and voltage regulation are achieved by primary side control technology for low cost application. To achieve higher efficiency and better EMI performance, SY22852 drives Flyback converters in the Quasi-Resonant mode.

Evaluation Board

  • 22852-9

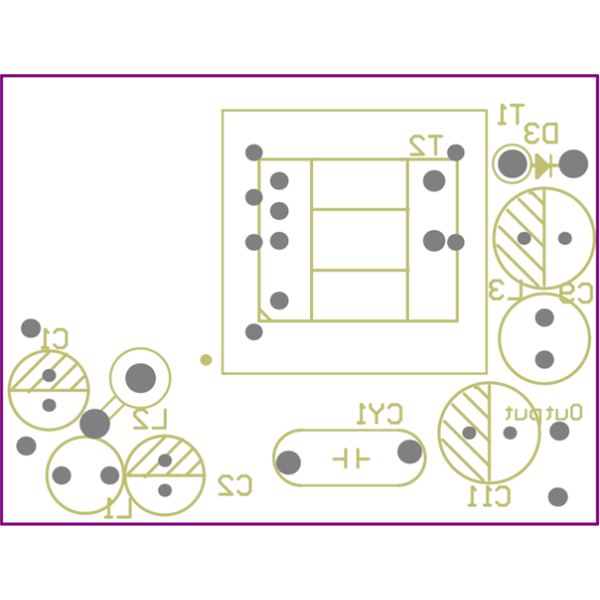

    Photo of evaluation board

  • 22852-8

    Photo of evaluation board

EVB_SY22852FAC

The EVB_SY22852FAC is used to evaluate a PWM controller with several features to enhance performance of Flyback converters.
