SY24104AQCC (SY6014AQCC)

Analog Class-D Audio IC with EMI Suppression

SY24104AQCC Analog Class-D Audio IC with EMI Suppression Datasheet

Parameters
Features
Description

Part number	SY24104AQCC
Input type	Analog
Channel(#)	2
Vs (min)(V)	5.5
Vs (max)(V)	12
Load (min)(Ω)	6
Po(W/Ch)	6
THD+N (%)(1kHz 1W)	0.05
SNR (dB)	94
Features	Spread spectrum
Package	QFN4×4-24
Operating temperature range(°C)	-40 to 85

2×3.8W into 4Ω BTL Loads @1% THD+N From a 7V Supply
2×4.7W into 4Ω BTL Loads @10% THD+N From a 7V Supply
2×5.8W into 4Ω BTL Loads @1% THD+N From a 9V Supply
2×6W into 8Ω BTL Loads @1% THD+N From a 12V Supply
2×4W into 8Ω BTL Loads @10% THD+N From an 8V Supply
2×2.3W into 8Ω BTL Loads @10% THD+N From a 6V Supply
Operates From 5.5V to 12V
Filterless/Filter Operation
Adjustable Power Limit
Spread-Spectrum Modulation for Good EMI Performance
High PSRR
High Efficiency Class-D Operation Eliminates Need for Heat Sinks
Four Fixed-gain Controlled: 20dB, 26dB, 32dB and 36dB
Internal Oscillator (No External Components Required)
Thermal and Short-Circuit Protection With Auto Recovery
Comprehensive Click and Pop Suppression
Space-saving Surface Mount QFN4×4-24 Package

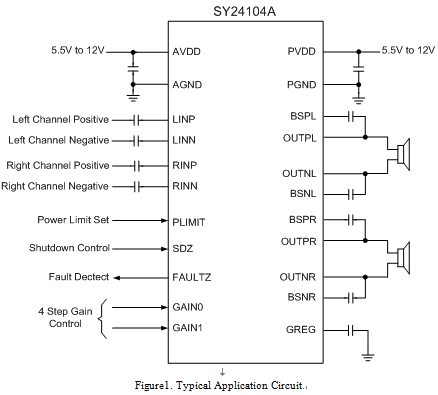

The SY24104A is an analog Class-D audio power amplifier. It has filterless operation control strategy which eliminates the LC filter for each channel to reduce the size of final product and the cost of mass production. It has high conversion efficiency for driving two bridge-tied stereo speakers with no need for an external heat sink when playing music. The spread spectrum operation mode is achieved internally to improve the EMI performance. The amplifier gain of SY24104A in audible bandwidth is selectable by the external pin. Fully short protection at output side against shorts to GND, V_DD and out-to-out is achieved with auto recovery capability.
