SY5867ZFAP

Production
Dimming Interface Converter Compatible With 0/1~10V Dimming Resistor Dimming And PWM Dimming
Datasheet
SY5867ZFAP Dimming Interface Converter Compatible With 0/1~10V Dimming Resistor Dimming And PWM Dimming Datasheet
Part number SY5867ZFAP
Description 3 in 1 dimming interface, DIP switch, Shut-off@light load
Topology
Dimming mode
PF (>) NA
Input type 55V
Iout (max) (A)
Pout (max) (W)
Package SO8
Application Dim-interface
  • Compatible with 0/1~10V Dimming, Resistor Dimming and PWM Dimming
  • Recognize Different Dimming Signal Automatically
  • Integrate 60V LDO Module to Simplify External Circuit
  • The Source Current for Passive 0~10V Dimmer Can Be Set
  • Dimming to off Function Available
  • The Frequency of Output Can Be Set
  • Compact Package: SO8

The SY5867Z is a dimming interface converter whose input signal can be a 0/1~10V dimming signal, resistor, or PWM signal. It recognizes the signal automatically. The final output of SY5867Z is a PWM signal which is used to control a dimmable CC regulator or drive an opto-coupler to achieve isolated dimming. The frequency of output PWM signal and the source current to passive 0~10V dimmer/Resistor can be set by external capacitor and resistor.

Evaluation Board

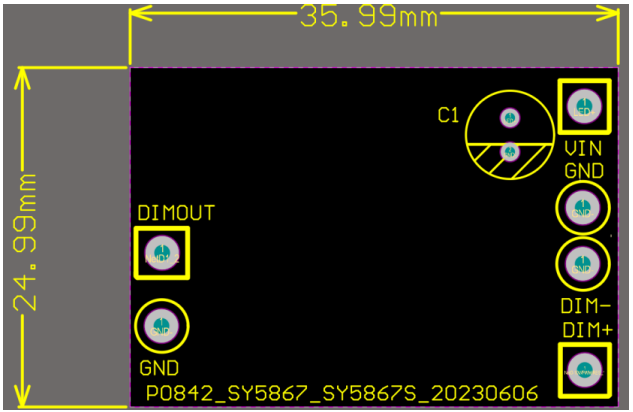

  • 2026-04-30_152309

    Photo of evaluation board

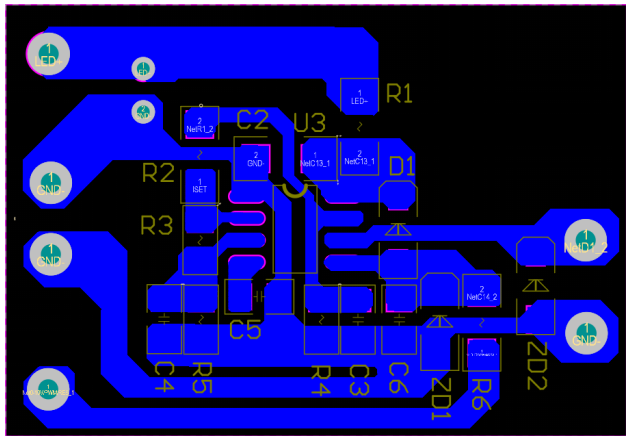

  • 2026-04-30_152320

    Photo of evaluation board

EVB_SY5867ZFAP

The EVB_SY5867ZFAP is intended for evaluating Dimming Interface Converter Compatible With 0/1~10V Dimming Resistor Dimming And PWM Dimming
