SY58874UFAC

Production
Boost PFC Regulator
Datasheet
SY58874UFAC Boost PFC Regulator Datasheet
Part number SY58874UFAC
Description Boost CV PFC regulator with 520V/3.4Ω MOS, QR, THD<10%
Topology Boost
Dimming mode Non-dimming
PF (>) 0.9
Input type 230VAC
Iout (max) (A)
Pout (max) (W) 60
Package SO8
Application Boost CV, PFC
  • Integrated 520V MOSFET
  • Quasi-Resonant (QR) Mode to Achieve Low Switching Losses
  • PF>0.95, THD<10%
  • Output Over Voltage Protection
  • Low BOM Cost  RoHS Compliant and Halogen Free
  • Compact Package: SO8

SY58874U is a single-stage Boost PFC Regulator. Constant tON operation is applied to achieve high PF and no multiplier is need. Quasi-Resonant switching is applied to achieve high efficiency and better EMI performance.

Evaluation Board

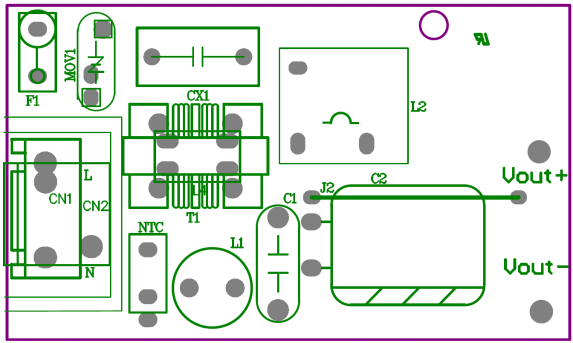

  • 2026-04-30_152518

    Photo of evaluation board

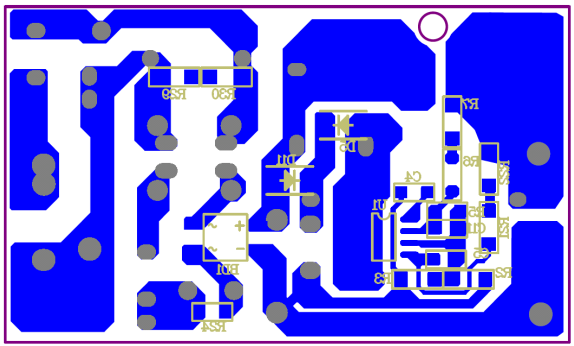

  • 2026-04-30_152531

    Photo of evaluation board

EVB_SY58874UFAC

The EVB_SY58874UFAC is intended for evaluating Boost PFC Regulator

Technical Documentation

Title Date
Silergy_Catalog_Q2_2026 2026-06-12
