High Efficiency, 1.5MHz, 2A, 5.5V Input Synchronous Buck Converter
![]()
- Parameters
- Features
- Description
| Part number |
SY80082FABT |
| Channel(#) |
1 |
| Vin (min) (V) |
2.5 |
| Vin (max) (V) |
5.5 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
1500 |
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
5.5 |
| Iout (max) (A) |
2 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1.5% |
| Vout accuracy(±%) |
|
| Control mode |
COT OFF+lpeak |
| Duty cycle (max)(%) |
|
| Operation mode |
PFM |
| Iq (typ) (uA) |
50 |
| Features |
Power Good Indicator; Output Auto Discharge; Latch off Mode UVP, OTP; UVLO |
| Package |
SOT23-6 |
| Operating temperature range(°C) |
-40~125°C |
| Functional safety category |
|
- Low RDS(ON) for Internal MOSFETs: 130mΩ Top, 85mΩ Bottom
- Wide Input Voltage Range: 2.5V ~ 5.5V
- Up to 2A Output Current
- ±1.5% 0.6V Reference
- PFM Light Load Operation for High Efficiency
- Internal Soft-Start Limits the Inrush Current
- 1.5MHz Switching Frequency Minimizes the External Components
- Constant Off-time and Peak Current Mode Control to Achieve Fast Transient Responses
- 100% Dropout Operation
- Power Good Indicator
- Output Auto Discharge Function
- Cycle-by-Cycle Peak Current Limit Protection
- Hic-Cup Mode Output Under Voltage Protection for SY80082ABT
- Latch off Mode Output Under Voltage Pretection for SY80082FABT, SY80082LABT
- Auto-Recovery Mode Over Temperature Protection for SY80082ABT
- Latch off Mode Over Temperature Protection for SY80082FABT, SY80082LABT
- Input Under Voltage Lockout (UVLO)
- RoHS-Compliant and Halogen-Free
- Compact Package: SOT23-6
The SY80082x high efficiency 1.5MHz synchronous buck converter operates over a wide input voltage range of 2.5V to 5.5V, and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 1.5MHz pseudo-constant switching frequency enables using small external inductor and capacitor values.
Evaluation Board
-

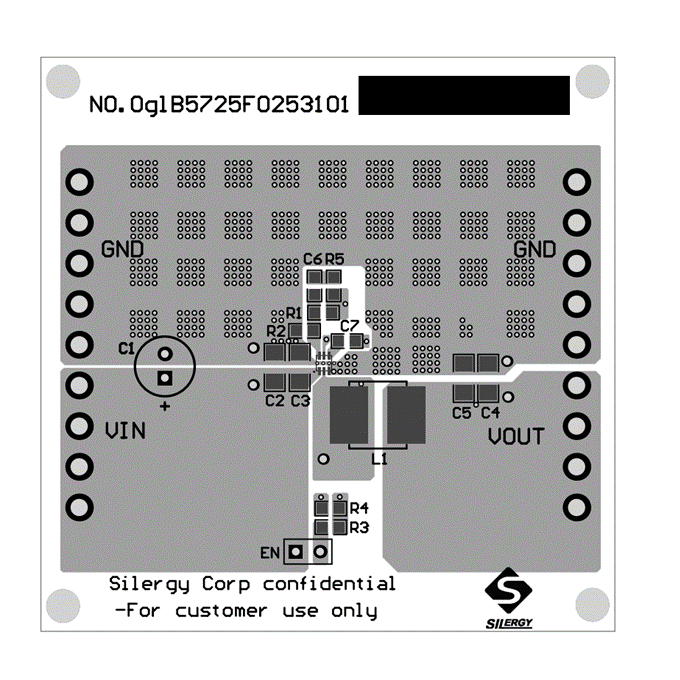

Photo of evaluation board
-

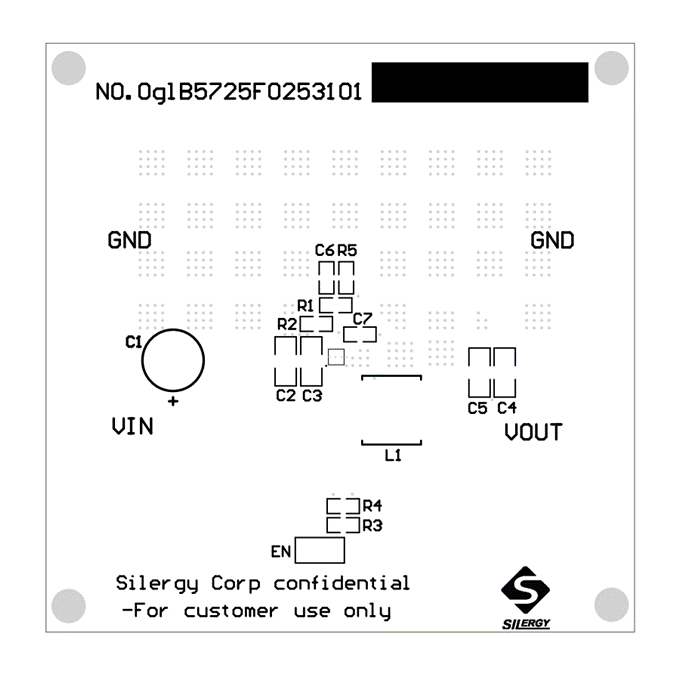

Photo of evaluation board
-

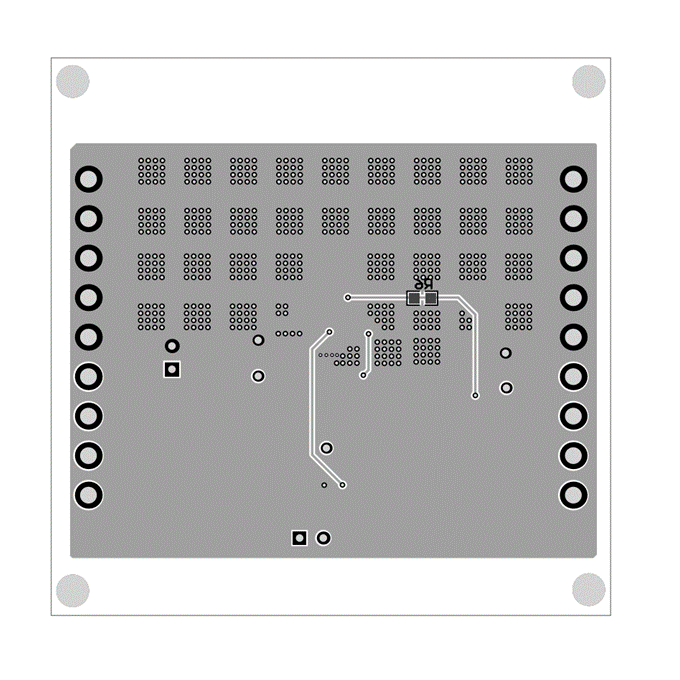

Photo of evaluation board
EVB_SY80082F_1 is intended for evaluating 1.5MHz, 2A, 5.5V, synchronous buck converter.
