High Efficiency, 1200kHz, 2A, 18V Input Synchronous Buck Converter
![]()
- Parameters
- Features
- Description
| Part number |
SY81152BART |
| Channel(#) |
1 |
| Vin (min) (V) |
4.5 |
| Vin (max) (V) |
18 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
1200 |
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
9.2 |
| Iout (max) (A) |
2 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1% |
| Vout accuracy(±%) |
|
| Control mode |
COT+Ripple |
| Duty cycle (max)(%) |
|
| Operation mode |
FCCM |
| Iq (typ) (uA) |
160 |
| Features |
|
| Package |
SOT563 |
| Operating temperature range(°C) |
-40°C to 125°C |
| Functional safety category |
|
- Low RDS(ON) for Internal MOSFETs: 65mΩ Top, 30mΩ Bottom
- Wide Input Voltage Range:4.5V ~ 18V
- Up to 2A Output Current
- High Duty Cycle Capable using On-Time Stretch
- Precise ±1% 0.6V Reference under -40°C~125°C
- Precise EN Threshold
- Pulse-Frequency Modulation(PFM) Mode Operation for SY81152C
- Forced Continuous Conduction (FCCM) Mode Operation for SY81152B
- Internal Soft-Start Limits the Inrush Current
- 1200kHz Switching Frequency Minimizes the External Components
- Constant On-time and Ripple-Based Control to Achieve Fast Transient Responses
- Cycle-by-Cycle Valley and Peak Current Limit Protection
- Hic-Cup Mode Output Under Voltage Protection
- Auto-Recovery Mode Over Temperature Protection
- Input Under Voltage Lockout (UVLO)
- RoHS-Compliant and Halogen-Free
- Compact Package: SOT563
The SY81152x high efficiency 1200kHz synchronous buck converter operates over a wide input voltage range, and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 1200kHz pseudo-constant switching frequency enables using small external inductor and capacitor values.
Evaluation Board
-

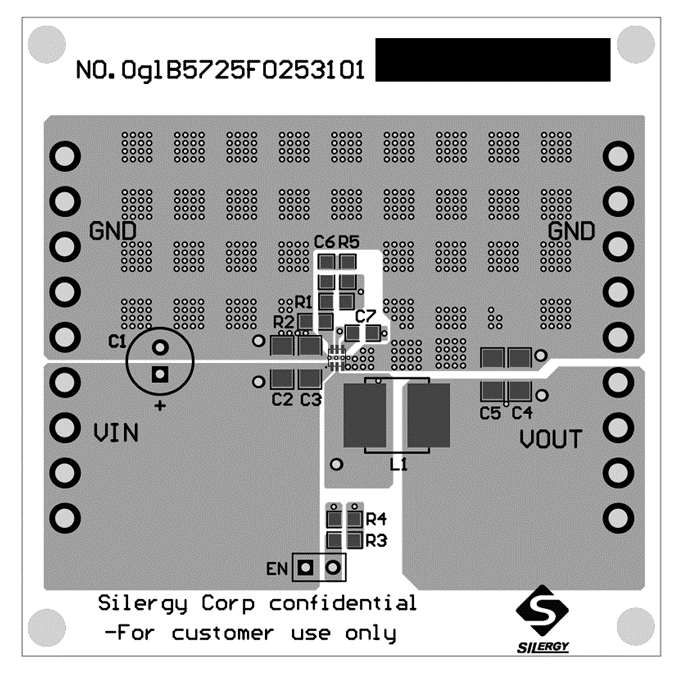

Photo of evaluation board
-

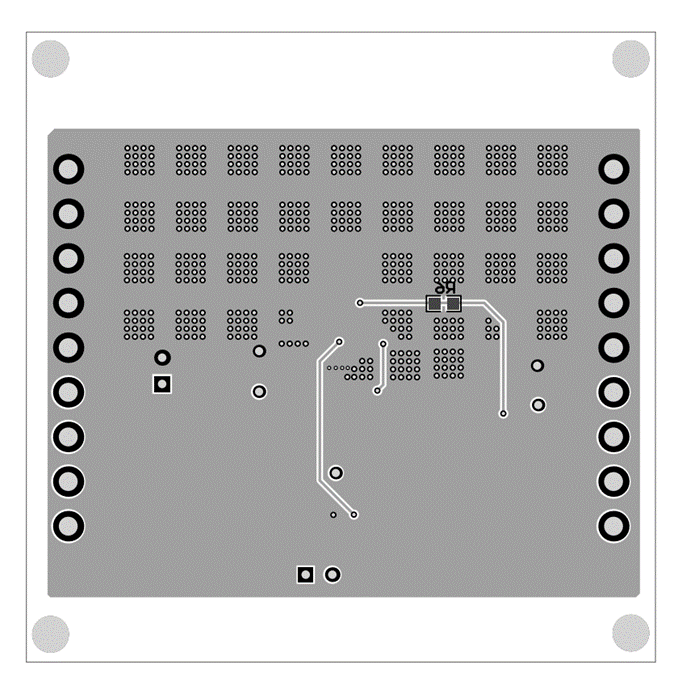

Photo of evaluation board
-

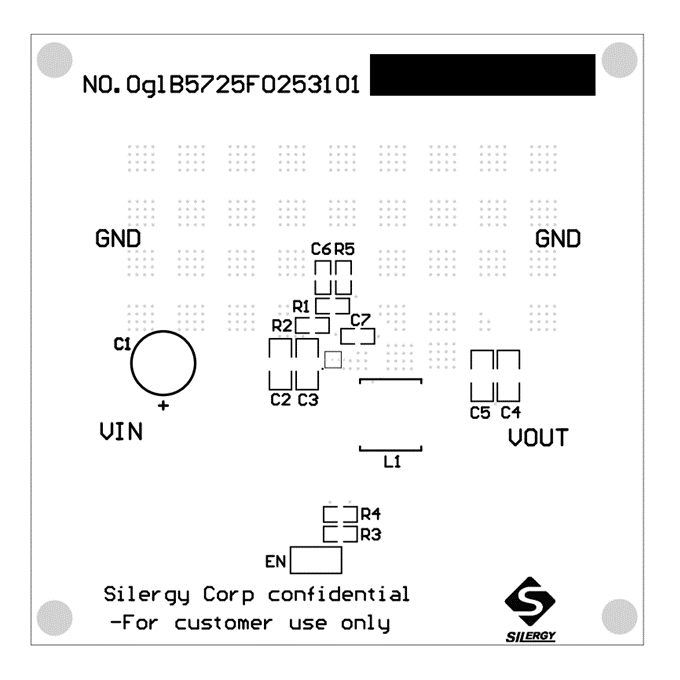

Photo of evaluation board
EVB_SY81152BART_1 is intended for evaluating 2A, 18V, 1200kHz synchronous buck converter.
