High Efficiency Fast Response, 3A, 24V Input Synchronous Buck Converter
![]()
- Parameters
- Features
- Description
| Part number |
SY82053SAD |
| Channel(#) |
1 |
| Vin (min) (V) |
4.5 |
| Vin (max) (V) |
24 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
500 |
| Vout (min) (V) |
0.805 |
| Vout (max) (V) |
12.5 |
| Iout (max) (A) |
3 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1% |
| Vout accuracy(±%) |
|
| Control mode |
COT+Ripple |
| Duty cycle (max)(%) |
|
| Operation mode |
PFM |
| Iq (typ) (uA) |
130 |
| Features |
Output Auto-Discharge; Hic-Cup UVP; Auto-Recovery OTP; UVLO |
| Package |
DFN2×1.5-8 |
| Operating temperature range(°C) |
-40°C to 125°C |
| Functional safety category |
|
- Low RDS(ON) for Internal MOSFETs: 100mΩ Top, 50mΩ Bottom
- Wide Input Voltage Range: 4.5V ~ 24V
- Up to 3A Output Current
- ±1% 0.805V Reference Accuracy
- Precise EN Threshold
- PFM Light Load Operation for High Efficiency
- Internal Soft-Start Limits the Inrush Current
- Support Smooth Startup with Pre-Biased Output
- 500kHz Switching Frequency Minimizes the External Components
- Constant On-Time and Ripple-Based Control to Achieve Fast Transient Responses
- Output Auto-Discharge Function
- Cycle-by-Cycle Valley and Peak Current Limit Protection
- Hic-Cup Mode Output Under Voltage Protection
- Auto-Recovery Mode Over Temperature Protection
- Input Under Voltage Lockout (UVLO)
- RoHS-Compliant and Halogen-Free
- Compact Package: DFN2×1.5-8
- Moisture Sensitivity Level (MSL): 1
The SY82053 high efficiency 500kHz synchronous buck converter operates over a wide input voltage range of 4.5V to 24V, and can deliver an output current up to 3A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 500kHz pseudo-constant switching frequency enables using small external inductor and capacitor values.
Evaluation Board
-

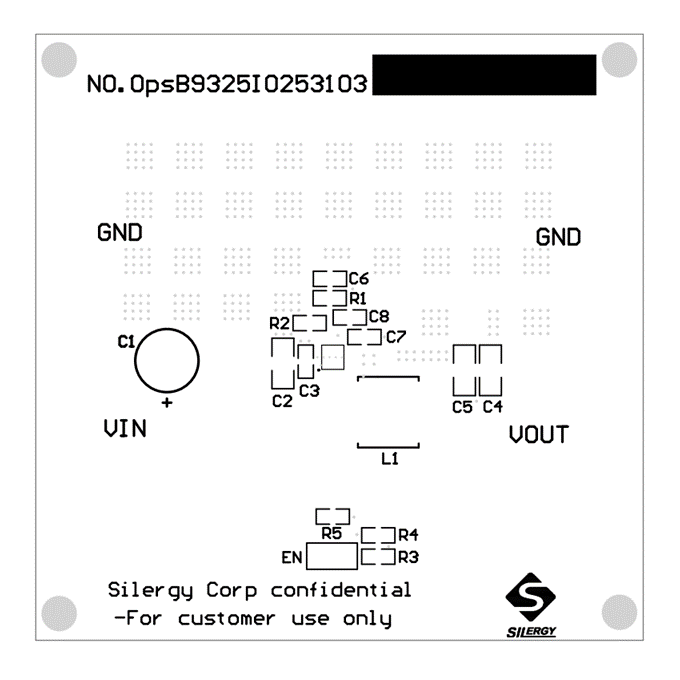

Photo of evaluation board
-

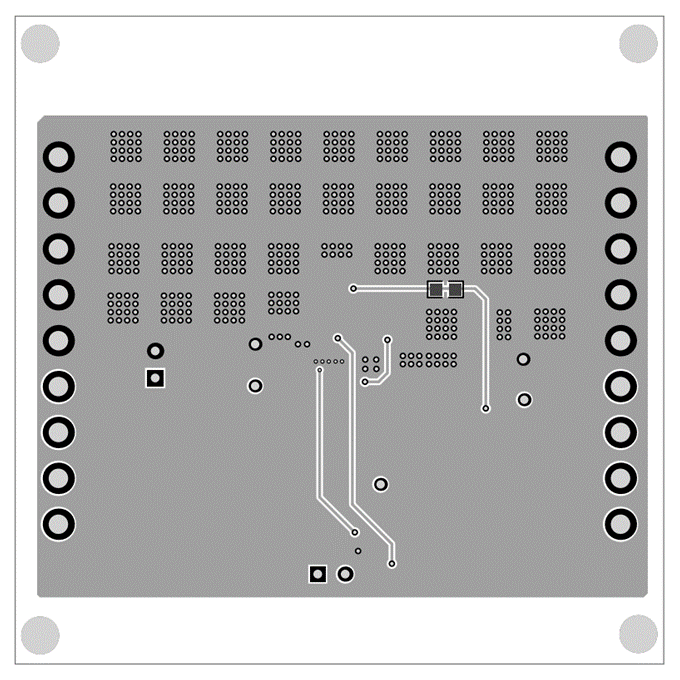

Photo of evaluation board
-

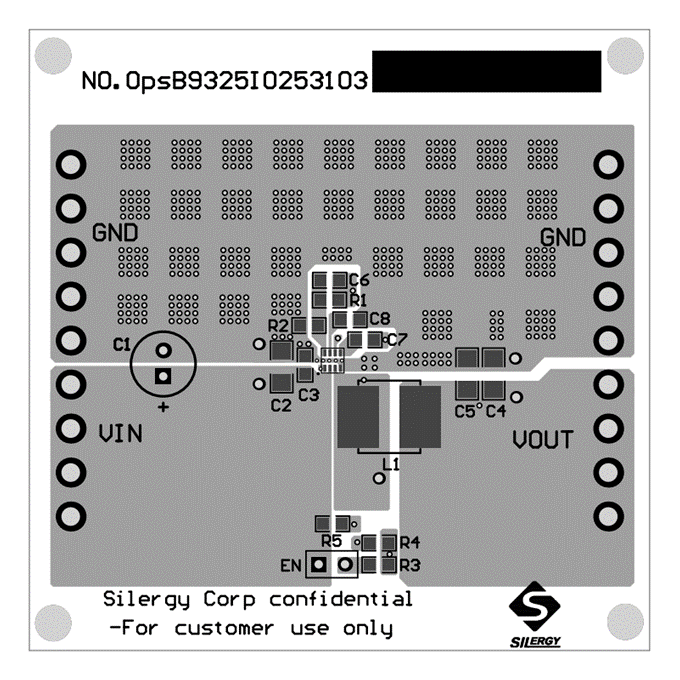

Photo of evaluation board
EVB_SY82053SAD_1 is intended for evaluating 3A, 24V, 500kHz synchronous buck converter.
