SY20341SAC (SY8821SAC)

Production
High Efficiency 2MHz, Dual 1.0A&1.5A Buck
Datasheet
SY20341SAC High Efficiency 2MHz, Dual 1.0A&1.5A Buck Datasheet
    Part numberSY20341SAC
    Channel(#)2
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)2000
    Switching frequency (max)(kHz)2000
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)1
    Vout2 (min)(V)0.6
    Vout2 (max )(V)5
    Iout2 (max)(A)1.5
    Vref accuracy (±%)2
    Vout accuracy(±%)
    Control modeClock+Ipeak
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)45
    FeaturesInterleave operation
    PackageDFN2×1.5-8
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Input Range: 2.5V to 5.5V Input Voltage
    • 2MHz Switching Frequency
    • 180° out of Phase Operation
    • Output Current: 1.0A for Channel 1, 1.5A for Channel 2
    • Low Quiescent Current: <45uA for both channels
    • Low RDS(ON) for Internal Switches (PFET/NFET):  125mΩ/100mΩ
    • Internal soft-start
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2x1.5-8

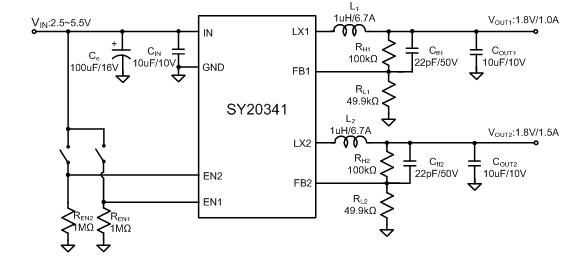

     The SY20341 is a dual-output, high efficiency 2MHz synchronous step down DC/DC regulator, capable of delivering up to 1.0A and 1.5A for channel 1 and channel 2. The SY20341 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



    Evaluation Board

    • 20341-1

      Photo of evaluation board

    • 20341-2

      Photo of evaluation board

    • 20341-3

      Photo of evaluation board

    EVB_SY20341SAC

    The EVB_SY20341SAC is intended for evaluating 2MHz, Dual 1.0A & 1.5A, synchronous Buck regulator. It features Enable controls.
